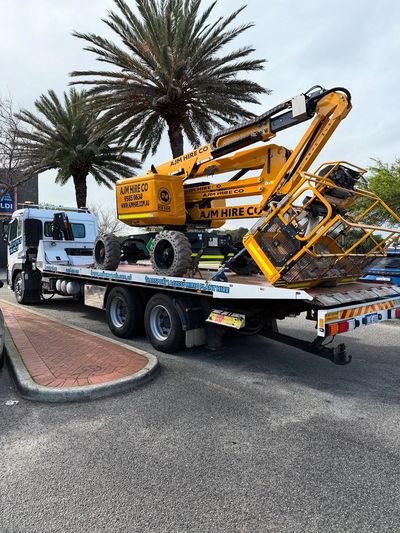

20m Articulating Diesel Boom Lift

---

 Designed for high-reach tasks in confined or obstructed spaces, this 20m articulating boom lift offers a working height of up to 20.5 meters, horizontal outreach up to 11.9 meters, and up-and-over clearance to navigate around obstacles with ease.

With multi-joint articulation, proportional controls, and platform rotation, operators can position precisely where the work is — even in tight, restricted spaces. Rugged 4WD, oscillating axles, and a tight turning radius ensure excellent off-road performance and manoeuvrability across uneven terrain.

Ideal for construction, maintenance, facility management, and industrial applications, the 20m articulated boom lift delivers elevated productivity, safety, and flexibility.

Specifications:

Maximum height- working: 20.5m

Maximum height - platform: 18.5m

Horizontal outreach: 11.9m

Up and over clearance: 8.5m

Lift capacity: 250kg

Platform size: 1.83 x 0.80m

Length - stowed: 8.6m

Width: 2.43m

Height stowed: 2.47m

Platform rotation: 180 degrees

Turntable rotation: 360 degrees

Tail swing: 42cm

Ground clearance: 30cm

**Make, model and specifications may vary and are indicative of the equipment available. **

Hire Rate:

24 hours: $375.00

7 Days: $1,125.00

Monthly: $3,750.00 (based on 4 weeks hire)

Contact for transport rates.

LONG TERM HIRE RATES AVAILABLE UPON REQUEST
